Service LocatorContextService lookup and creation involves complex interfaces and network operations. ProblemJ2EE clients interact with service components, such as EJB and JMS components, which provide business services and persistence capabilities. To interact with these components, clients must either locate the service component (referred to as a lookup operation) or create a new component. For instance, an EJB client must locate the enterprise bean's home object, which the client then uses either to find an object or to create or remove one or more enterprise beans. Similarly, a JMS client must first locate the JMS Connection Factory to obtain a JMS Connection or a JMS Session. All J2EE application clients use the JNDI common facility to look up and create EJB and JMS components. The JNDI API enables clients to obtain an initial context object that holds the component name to object bindings. The client begins by obtaining the initial context for a bean's home object. The initial context remains valid while the client session is valid. The client provides the JNDI registered name for the required object to obtain a reference to an administered object. In the context of an EJB application, a typical administered object is an enterprise bean's home object. For JMS applications, the administered object can be a JMS Connection Factory (for a Topic or a Queue) or a JMS Destination (a Topic or a Queue). So, locating a JNDI-administered service object is common to all clients that need to access that service object. That being the case, it is easy to see that many types of clients repeatedly use the JNDI service, and the JNDI code appears multiple times across these clients. This results in an unnecessary duplication of code in the clients that need to look up services. Also, creating a JNDI initial context object and performing a lookup on an EJB home object utilizes significant resources. If multiple clients repeatedly require the same bean home object, such duplicate effort can negatively impact application performance. Let us examine the lookup and creation process for various J2EE components.
The process to look up and create components involves a vendor-supplied context factory implementation. This introduces vendor dependency in the application clients that need to use the JNDI lookup facility to locate the enterprise beans and JMS components, such as topics, queues, and connection factory objects. Forces
SolutionUse a Service Locator object to abstract all JNDI usage and to hide the complexities of initial context creation, EJB home object lookup, and EJB object re-creation. Multiple clients can reuse the Service Locator object to reduce code complexity, provide a single point of control, and improve performance by providing a caching facility. This pattern reduces the client complexity that results from the client's dependency on and need to perform lookup and creation processes, which are resource-intensive. To eliminate these problems, this pattern provides a mechanism to abstract all dependencies and network details into the Service Locator. StructureFigure 8.31 shows the class diagram representing the relationships for the Service Locator pattern.

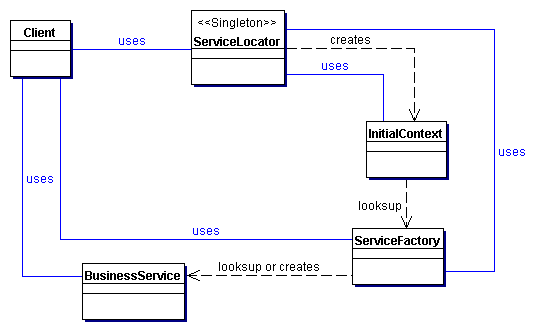

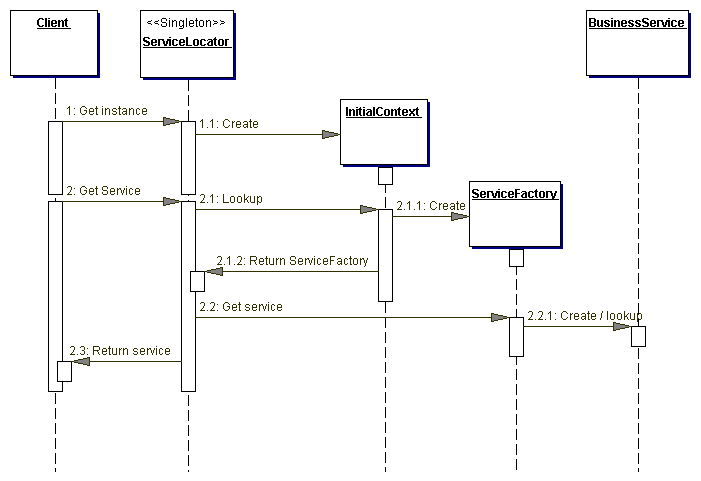

Participants and ResponsibilitiesFigure 8.32 contains the sequence diagram that shows the interaction between the various participants of the Service Locator pattern.
ClientThis is the client of the Service Locator. The client is an object that typically requires access to business objects such as a Business Delegate (see "Business Delegate" on page 248). Service LocatorThe Service Locator abstracts the API lookup (naming) services, vendor dependencies, lookup complexities, and business object creation, and provides a simple interface to clients. This reduces the client's complexity. In addition, the same client or other clients can reuse the Service Locator. InitialContextThe InitialContext object is the start point in the lookup and creation process. Service providers provide the context object, which varies depending on the type of business object provided by the Service Locator's lookup and creation service. A Service Locator that provides services for multiple types of business objects (such as enterprise beans, JMS components, and so forth) utilizes multiple types of context objects, each obtained from a different provider (e.g., context provider for an EJB application server may be different from the context provider for JMS service). ServiceFactoryThe ServiceFactory object represents an object that provides life cycle management for the BusinessService objects. The ServiceFactory object for enterprise beans is an EJBHome object. The ServiceFactory for JMS components can be a JMS ConnectionFactory object, such as a TopicConnectionFactory (for publish/subscribe messaging model) or a QueueConnectionFactory (for point-to-point messaging model). BusinessServiceThe BusinessService is a role that is fulfilled by the service the client is seeking to access. The BusinessService object is created or looked up or removed by the ServiceFactory. The BusinessService object in the context of an EJB application is an enterprise bean. The BusinessService object in the context of a JMS application can be a TopicConnection or a QueueConnection. The TopicConnection and QueueConnection can then be used to produce a JMSSession object, such as TopicSession or a QueueSession respectively. StrategiesEJB Service Locator StrategyThe Service Locator for enterprise bean components uses EJBHome object, shown as BusinessHome in the role of the ServiceFactory. Once the EJBHome object is obtained, it can be cached in the ServiceLocator for future use to avoid another JNDI lookup when the client needs the home object again. Depending on the implementation, the home object can be returned to the client, which can then use it to look up, create, and remove enterprise beans. Otherwise, the ServiceLocator can retain (cache) the home object and gain the additional responsibility of proxying all client calls to the home object. The class diagram for the EJB Service Locator strategy is shown in Figure 8.33.

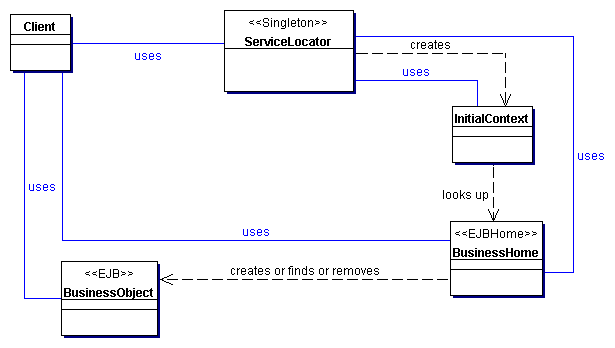

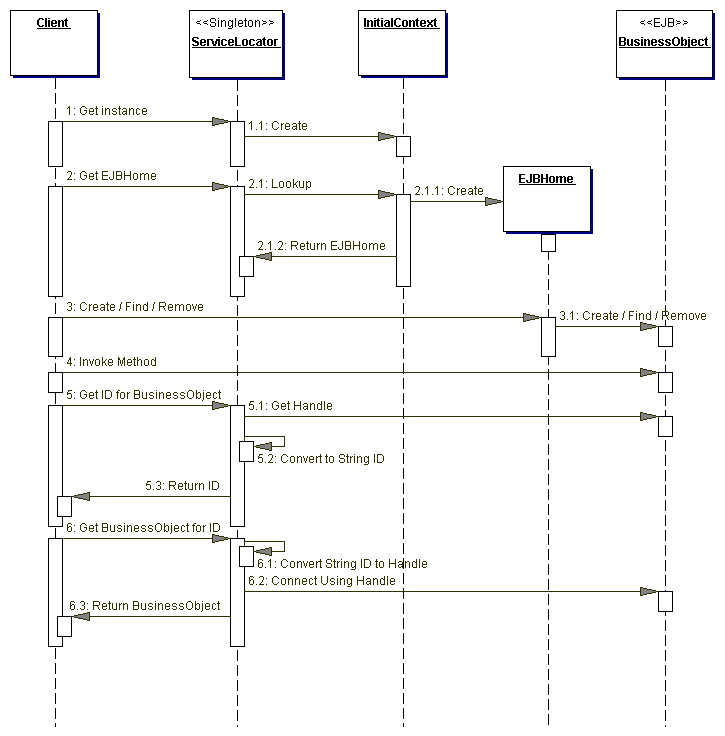

The interaction between the participants in a Service Locator for an enterprise bean is shown in Figure 8.34.
JMS Queue Service Locator StrategyThis strategy is applicable to point-to-point messaging requirements. The Service Locator for JMS components uses QueueConnectionFactory objects in the role of the ServiceFactory. The QueueConnectionFactory is looked up using its JNDI name. The QueueConnectionFactory can be cached by the ServiceLocator for future use. This avoids repeated JNDI calls to look it up when the client needs it again. The ServiceLocator may otherwise hand over the QueueConnectionFactory to the client. The Client can then use it to create a QueueConnection. A QueueConnection is necessary in order to obtain a QueueSession or to create a Message, a QueueSender (to send messages to the queue), or a QueueReceiver (to receive messages from a queue). The class diagram for the JMS Queue Service Locator strategy is shown in Figure 8.35. In this diagram, the Queue is a JMS Destination object registered as a JNDI-administered object representing the queue. The Queue object can be directly obtained from the context by looking it up using its JNDI name.

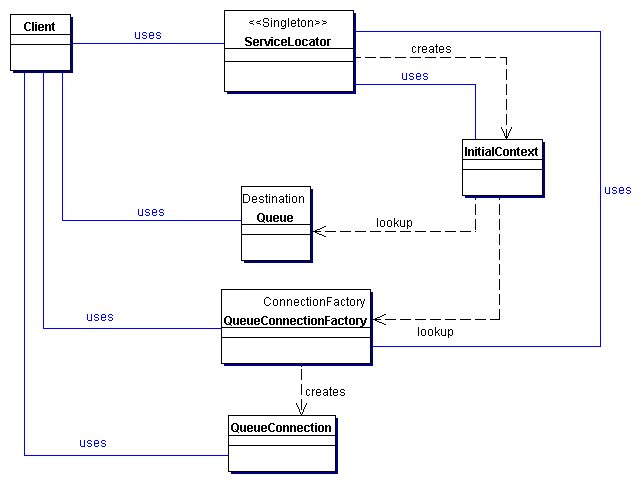

The interaction between the participants in a Service Locator for point-to-point messaging using JMS Queues is shown in Figure 8.36.
JMS Topic Service Locator StrategyThis strategy is applicable to publish/subscribe messaging requirements. The Service Locator for JMS components uses TopicConnectionFactory objects in the role of the ServiceFactory. The TopicConnectionFactory is looked up using its JNDI name. The TopicConnectionFactory can be cached by the ServiceLocator for future use. This avoids repeated JNDI calls to look it up when the client needs it again. The ServiceLocator may otherwise hand over the TopicConnectionFactory to the client. The Client can then use it to create a TopicConnection. A TopicConnection is necessary in order to obtain a TopicSession or to create a Message, a TopicPublisher (to publish messages to a topic), or a TopicSubscriber (to subscribe to a topic). The class diagram for the JMS Topic Service Locator strategy is shown in Figure 8.37. In this diagram, the Topic is a JMS Destination object registered as a JNDI-administered object representing the topic. The Topic object can be directly obtained from the context by looking it up using its JNDI name.

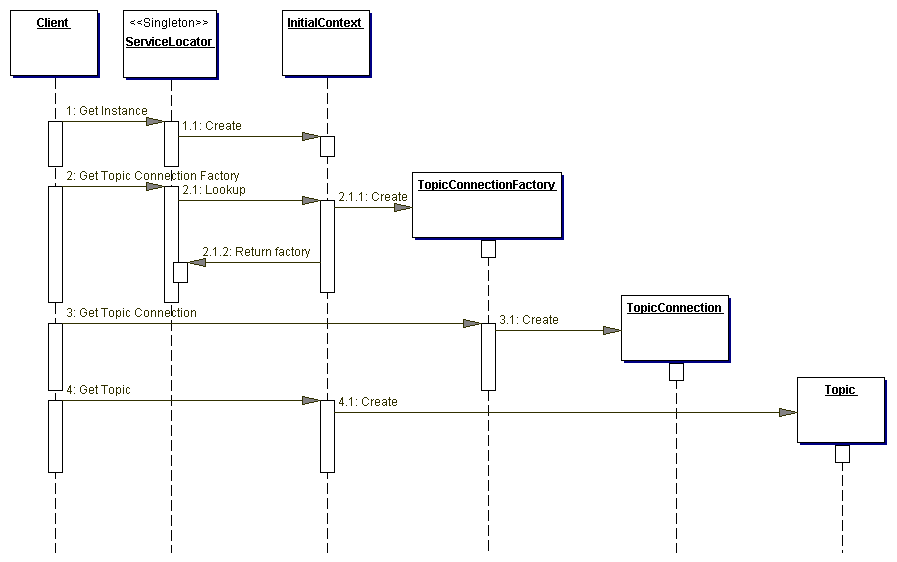

The interaction between the participants in a Service Locator for publish/subscribe messaging using JMS Topics is shown in Figure 8.38.

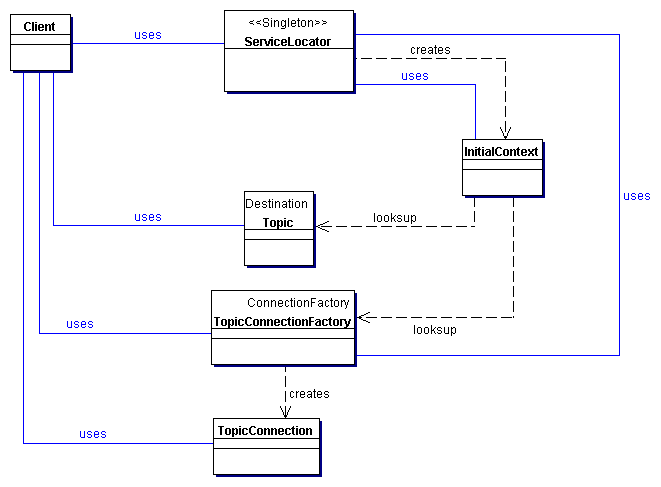

Combined EJB and JMS Service Locator StrategyThese strategies for EJB and JMS can be used to provide separate Service Locator implementations, since the clients for EJB and JMS may more likely be mutually exclusive. However, if there is a need to combine these strategies, it is possible to do so to provide the Service Locator for all objects-enterprise beans and JMS components. Type Checked Service Locator StrategyThe diagrams in Figures 8.37 and 8.38 provide lookup facilities by passing
in the service lookup name. For an enterprise bean lookup, the Service
Locator needs a class as a parameter to the This strategy has trade-offs. It reduces the flexibility of lookup, which
is in the Services Property Locator strategy, but add the type checking
of passing in a constant to the Service Locator Properties StrategyThis strategy helps to address the trade-offs of the type checking strategy. This strategy suggests the use of property files and/or deployment descriptors to specify the JNDI names and the EJBHome class name. For presentation-tier clients, such properties can be specified in the presentation-tier deployment descriptors or property files. When the presentation tier accesses the business tier, it typically uses the Business Delegate pattern. The Business Delegate interacts with the Service Locator to locate business components. If the presentation tier loads the properties on initialization and can provide a service to hand out the JNDI names and the EJB class names for the required enterprise bean, then the Business Delegate could request this service to obtain them. Once the Business Delegate has the JNDI name and the EJBHome Class name, it can request the Service Locator for the EJBHome by passing these properties as arguments. The Service Locator can in turn use Consequences
Sample CodeImplementing Service Locator PatternA sample implementation of the Service Locator pattern is shown in Example 8.33. An example for implementing the Type Checked Service Locator strategy is listed in Example 8.34. Example 8.33 Implementing Service Locator package corepatterns.apps.psa.util;
import java.util.*;
import javax.naming.*;
import java.rmi.RemoteException;
import javax.ejb.*;
import javax.rmi.PortableRemoteObject;
import java.io.*;
public class ServiceLocator {
private static ServiceLocator me;
InitialContext context = null;
private ServiceLocator()
throws ServiceLocatorException {
try {
context = new InitialContext();
} catch(NamingException ne) {
throw new ServiceLocatorException(...);
}
}
// Returns the instance of ServiceLocator class
public static ServiceLocator getInstance()
throws ServiceLocatorException {
if (me == null) {
me = new ServiceLocator();
}
return me;
}
// Converts the serialized string into EJBHandle
// then to EJBObject.
public EJBObject getService(String id)
throws ServiceLocatorException {
if (id == null) {
throw new ServiceLocatorException(...);
}
try {
byte[] bytes = new String(id).getBytes();
InputStream io = new
ByteArrayInputStream(bytes);
ObjectInputStream os = new
ObjectInputStream(io);
javax.ejb.Handle handle =
(javax.ejb.Handle)os.readObject();
return handle.getEJBObject();
} catch(Exception ex) {
throw new ServiceLocatorException(...);
}
}
// Returns the String that represents the given
// EJBObject's handle in serialized format.
protected String getId(EJBObject session)
throws ServiceLocatorException {
try {
javax.ejb.Handle handle = session.getHandle();
ByteArrayOutputStream fo = new
ByteArrayOutputStream();
ObjectOutputStream so = new
ObjectOutputStream(fo);
so.writeObject(handle);
so.flush();
so.close();
return new String(fo.toByteArray());
} catch(RemoteException ex) {
throw new ServiceLocatorException(...);
} catch(IOException ex) {
throw new ServiceLocatorException(...);
}
return null;
}
// Returns the EJBHome object for requested service
// name. Throws ServiceLocatorException If Any Error
// occurs in lookup
public EJBHome getHome(String name, Class clazz)
throws ServiceLocatorException {
try {
Object objref = context.lookup(name);
EJBHome home = (EJBHome)
PortableRemoteObject.narrow(objref, clazz);
return home;
} catch(NamingException ex) {
throw new ServiceLocatorException(...);
}
}
}
Implementing Type Checked Service Locator StrategyExample 8.34 Implementing Type Checked Service Locator Strategy package corepatterns.apps.psa.util;
// imports
...
public class ServiceLocator {
// singleton's private instance
private static ServiceLocator me;
static {
me = new ServiceLocator();
}
private ServiceLocator() {}
// returns the Service Locator instance
static public ServiceLocator getInstance() {
return me;
}
// Services Constants Inner Class - service objects
public class Services {
final public static int PROJECT = 0;
final public static int RESOURCE = 1;
}
// Project EJB related constants
final static Class PROJECT_CLASS = ProjectHome.class;
final static String PROJECT_NAME = "Project";
// Resource EJB related constants
final static Class RESOURCE_CLASS = ResourceHome.class;
final static String RESOURCE_NAME = "Resource";
// Returns the Class for the required service
static private Class getServiceClass(int service){
switch( service ) {
case Services.PROJECT:
return PROJECT_CLASS;
case Services.RESOURCE:
return RESOURCE_CLASS;
}
return null;
}
// returns the JNDI name for the required service
static private String getServiceName(int service){
switch( service ) {
case Services.PROJECT:
return PROJECT_NAME;
case Services.RESOURCE:
return RESOURCE_NAME;
}
return null;
}
/* gets the EJBHome for the given service using the
** JNDI name and the Class for the EJBHome
*/
public EJBHome getHome( int s )
throws ServiceLocatorException {
EJBHome home = null;
try {
Context initial = new InitialContext();
// Look up using the service name from
// defined constant
Object objref =
initial.lookup(getServiceName(s));
// Narrow using the EJBHome Class from
// defined constant
Object obj = PortableRemoteObject.narrow(
objref, getServiceClass(s));
home = (EJBHome)obj;
}
catch( NamingException ex ) {
throw new ServiceLocatorException(...);
}
catch( Exception ex ) {
throw new ServiceLocatorException(...);
}
return home;
}
}
The client code to use the Service Locator for this strategy may look like the code in Example 8.35. Example 8.35 Client Code for Using the Service Locator public class ServiceLocatorTester {
public static void main( String[] args ) {
ServiceLocator serviceLocator =
ServiceLocator.getInstance();
try {
ProjectHome projectHome = (ProjectHome)
serviceLocator.getHome(
ServiceLocator.Services.PROJECT );
}
catch( ServiceException ex ) {
// client handles exception
System.out.println( ex.getMessage( ));
}
}
}
This strategy is about applying type checking to client lookup. It encapsulates
the static service values inside the ServiceLocator and creates an inner
class Services, which declares the service constants ( Related Patterns
|
|||||||||||||||||||||||
